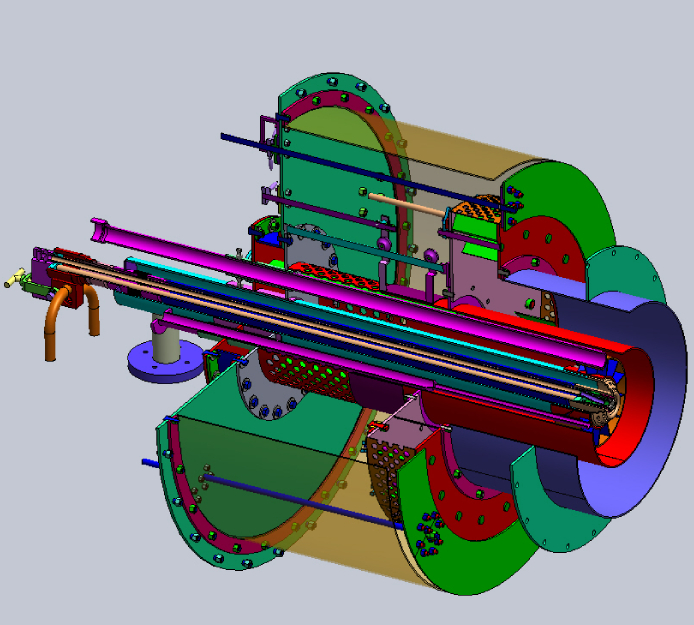

WALL FIRED BURNER

  • The CCE&CE burner is an advanced solution for low NOx oil/gas firing applications, without adversely affecting boiler performance.
  • This low NOX burner was developed to achieve superior NOX performance with more than 20 years of experience, assuring desired results.
  • CCE&CE developed the burner with a focus on maximum NOX reduction with optimum combustion efficiency, safety, and easy operation.
  • The compact design makes it well suited for retrofit applications and the burner requires minimal maintenance.

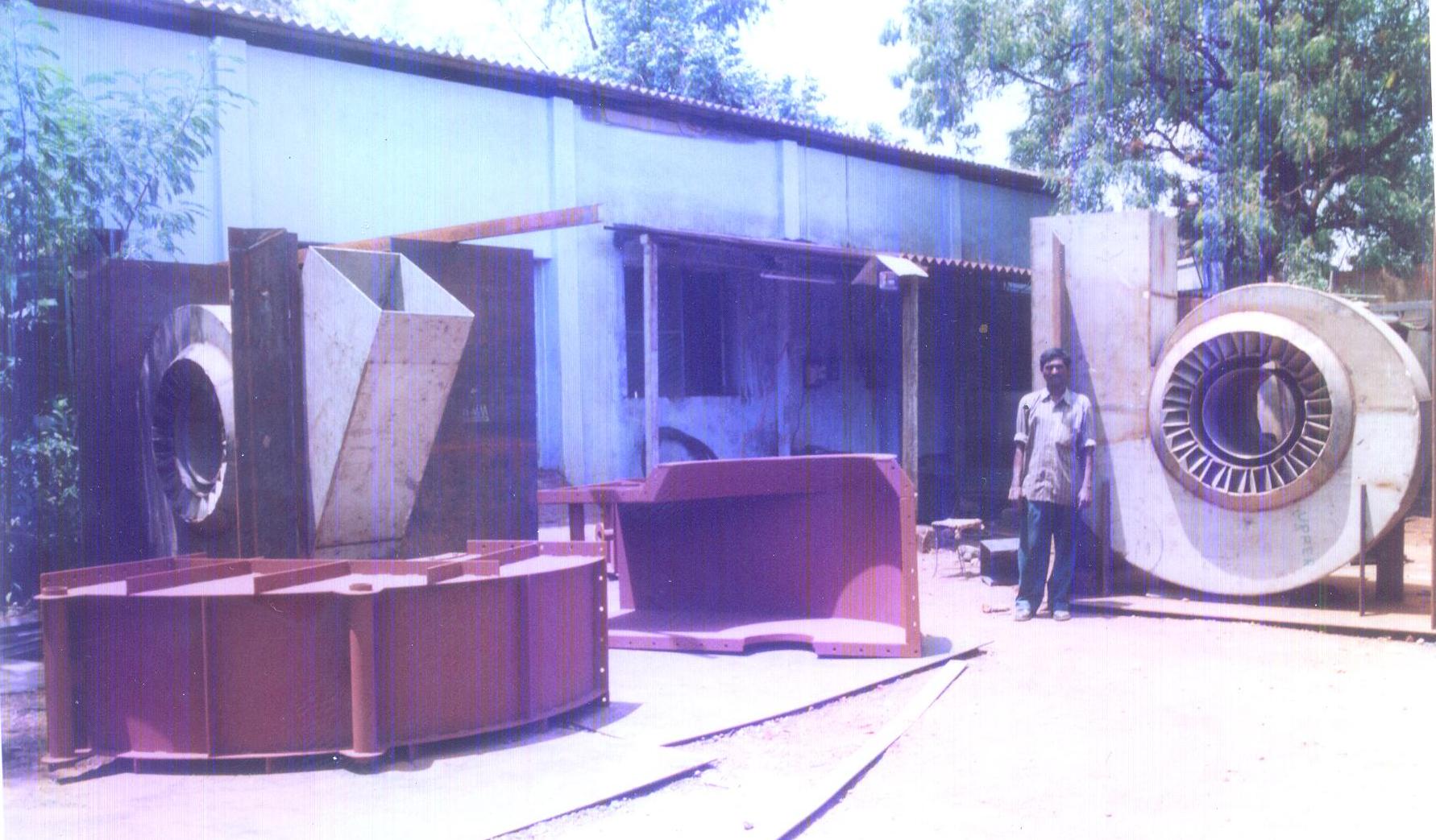

  • Each burner is completely shop assembled and mechanically tested before delivery.
  • The burner is designed as a retrofit, with little or no modifications on the boiler.

CCE&CE’S LOW NOX BURNER:

  • Proven performance in NOx reduction.
  • High flame stability and burner turndown.
  • Lower CO emissions / Excess air.
  • Adjustable of vanes to optimize performance
  • High heat resistance steel is used in all parts of the burner exposed to radiant furnace heat.

WIDE RANGE OF FUELS

  • Natural gas
  • Refinery fuel gas
  • Vaporized naphtha or 100% hydrogen
  • Optional waste gas firing
  • Heavy Oils – Low Sulfur Heavy Stock (LSHS), Furnace Oil (FO), Tar.
  • Light Oils – Naphtha, Natural Gas Liquid (NGL), Light Diesel Oil (LDO), High-Speed Diesel (HSD), Kerosene, C-9, and their likes.
Heat Release:

  •  Burner can be designed for any heat release rate/throat size.

Air register:

  • Optimized air distribution improves the flame shape and emission performance, excess air control.

Low maintenance:

  • Robust refractory throat for increased life.
  • Centrally placed and easily removable gas burner.

Reliability and Efficiency:

  • Compact flames minimize flame impingement.
  • No metal in the throat, only refractory.
  • In high stability over a wide range of fuels and operating conditions
  • Oil gun – Produces a finer oil spray with Y-jet type of tips, minimizes atomizer plugging.
  • Damper actuator – Easily adjusts the main air damper position for light-off, full-load, and out-of-service cooling.
  • Primary air damper – Adjusts primary airflow to the oil gun or gas spuds for optimizing combustion.
  • Secondary air damper – Adjusts the secondary airflow to shape the flame and distribute the air.

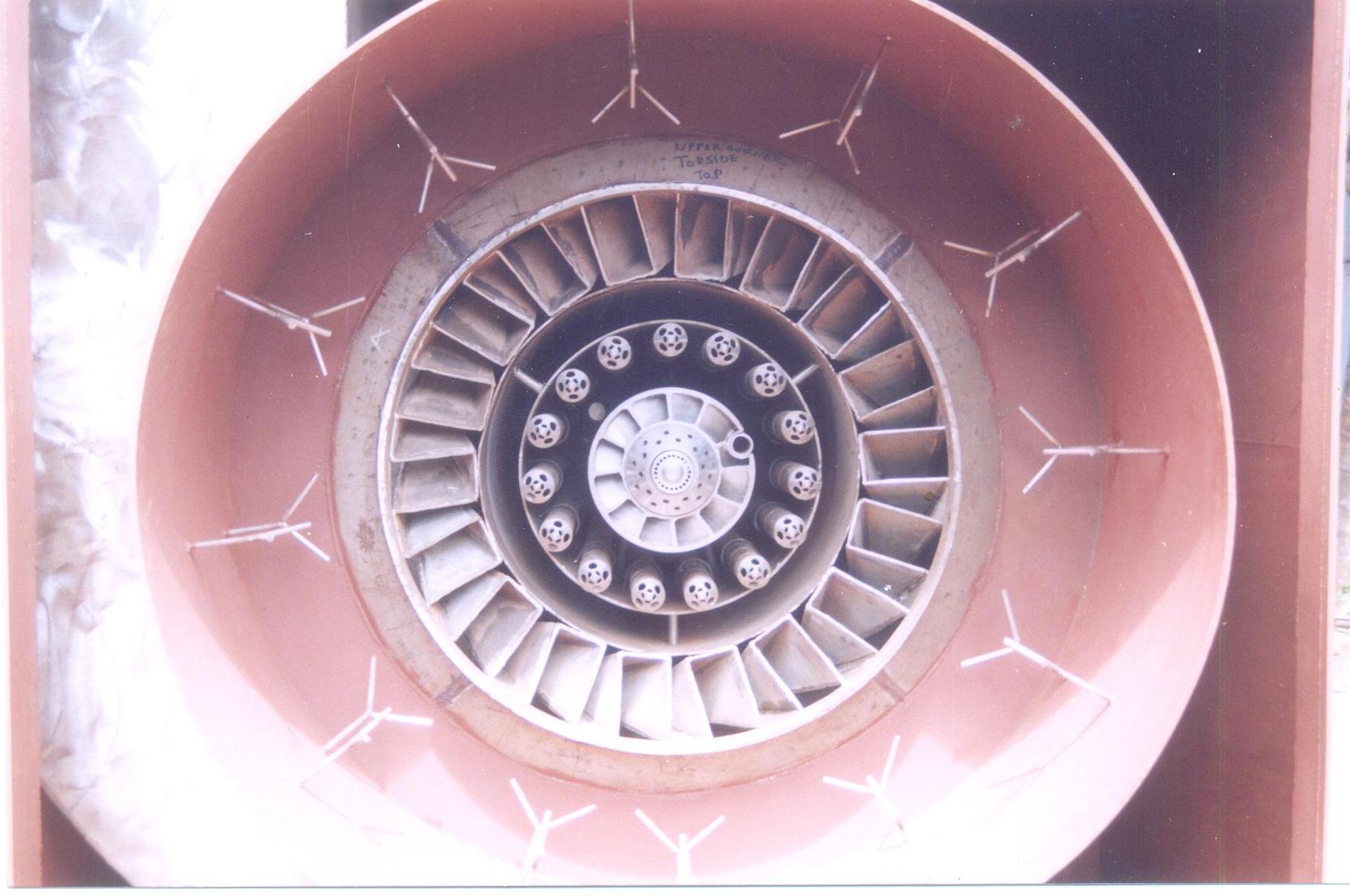

  • Spinner vanes – Provide proper mixing of the secondary air and fuel – vane.
