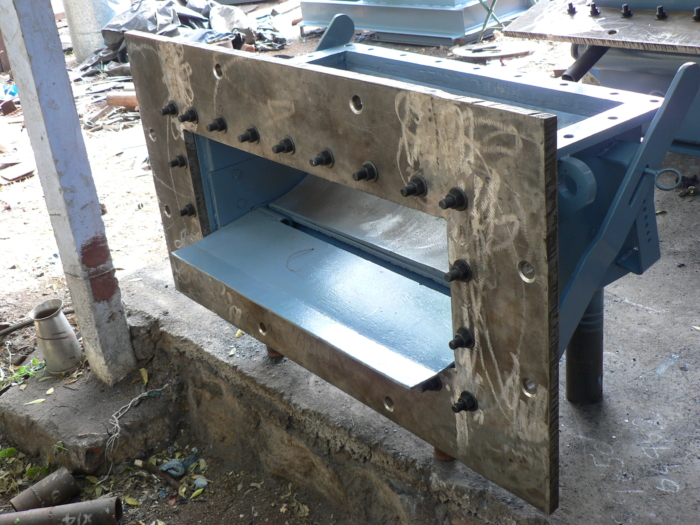

BAGASSE SPREADER

BAGASSE SPREADER

  • CCE&CE Bagasse spreader ensures the Bagasse spread uniformly over the firing bed of the boiler.
  • CCE & CE spreader are aerodynamically designed for better combustion for performance.
  • Bagasse has a low density with a high moisture and volatile content. They are therefore best burnt in suspension
  • In the past, solid fuel fired boilers used mechanical throwers to spread the fuel into the furnace. However these are not effective with low density fibrous fuels such as bagasse where pneumatic spreading is better.
  • CCE &CE’s spreader ensure high degree of uniformity of distribution across the furnace plane area.
  • Spreaders designs for bagasse have performed satisfactorily.
  • Spreader lip comes in manual control.
  • CCE&CE’Spneumatic spreader is able to distribute both fibrous and granular fuels.
  • The spreaders, which bolt onto the front panel of the furnace, are air cooled.
  • The fuels are blown over distribution plates which are individually matched to their furnace location.
  • The “throw” of the fuel into the furnace can be set by adjusting either the angle at which the distribution plates are set or the conveying air pressure.
  • The spreaders are made of SS 304 except for the deflector plates which, being exposed to direct furnace radiation, are of SS 310.
  • Spreader is manufactured from superior quality cast alloy material suitable to sustain at a temperature of 900oC
